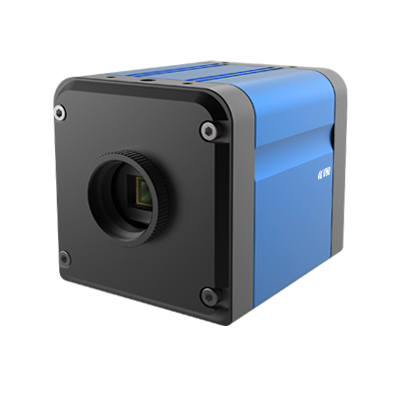

iN3-89EC
4K UHD ITS & Machine Vision Camera
iN3-89EC
- 4K UHD, 30 fps @ 4096 x 2160 pixels
- e2v EV2S8M9C CMOS global shutter sensor
- JPEG, H.264 / H.265, YUV420
- GenICam, ONVIF
- HDMI port (Option)
-
Surveillance -
Over speed prevention -
Accident prevention -
Road safety
Specification
| Image sensor | e2v Emerald EV2S8M9C, CMOS |
|---|---|
| Resolution | 4096 x 2160 pixels |
| Sensor size | 2/3" |
| Frame rate | 30 fps |
| Shutter type | Global shutter |
| Sensor type | Color |
| Interface | 100 / 1000 Mbps Ethernet (RJ45) |
| Mount | C / CS - mount |
| I/O port | 1 x Input for triggering (Low voltage : 0 V ~ 0.8 V / high level : 2 V ~ 24 V) |
| 2x Strobe (TTL, open collector) | |
| RS232C | |
| Protocol | RTSP (H.264 / H.265, MJPEG), GigE Vision protocol, GenICam, ONVIF |
| Trigger mode | Pseudo multi shot, external trigger (One shot / multi shot), software trigger |
| HDMI | HDMI A (Locking) |
| Filter switcher | IR cut filter On / Off |
| Operation temperature / Humidity | 0 ℃ ~ 50 ℃ / 20 % ~ 80 % |
| Power | 12 V DC ~ 24 V DC < 8.5W. |
| Size / weight | 70 x 72 x 82 mm / 665 g |
| xSDK | Viewer and example code (C++) |
| RS232C | KC, CE |
